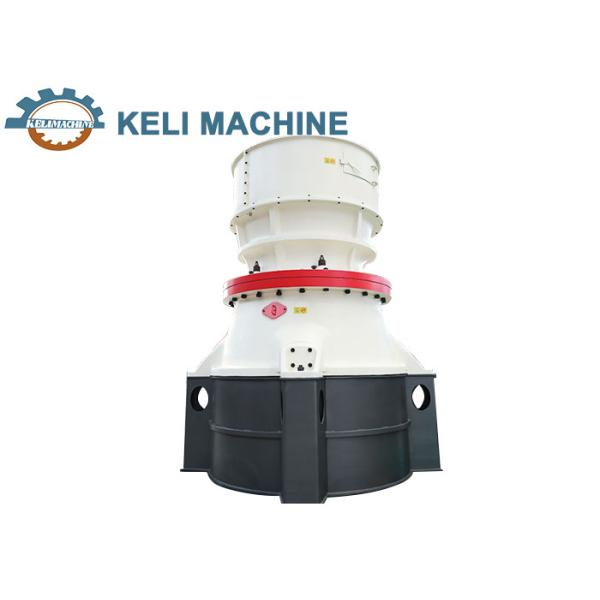

Mill Crusher One Complete Single Cylinder Hydraulic Cone Crusher
Working Principle |
When the Single Cylinder Cone Crusher is working, the motor drives
the pinion gear of the crusher, the pinion gear drives the big
gear, the big gear assembly (big gear, big gear frame, eccentric
steel sleeve) drives the eccentric sleeve assembly (eccentric
cylinder sleeve, eccentric copper sleeve) and the main shaft
assembly (main shaft, inner cone, inner cone liner) to the center
of the theoretical vertical line, rotating in the copper liner, and
the main shaft assembly can rotate by the centerline of the main
shaft in the eccentric copper sleeve. When the machine is running
empty, the eccentric bushing assembly "holds" the main shaft
assembly and rotates with the big gear, when the material is added
into the crushing chamber, the main shaft assembly (main shaft,
inner cone) rotates slowly in the eccentric copper bushing under
the resistance of the material. The running track of the inner cone
seems to be swinging back and forth in the crushing chamber while
rotating slowly. The material is crushed by the swinging inner
cone. The supporting sleeve and the frame are connected by the
hydraulic cylinder pressure, when the crusher falls into the metal
block and other unbreakable objects, the single cylinder of the
moving cone by the bottom of the hydraulic piston to lift up, to
play the role of the discharge port adjustment and over-iron
protection, and repeatedly rise and fall to exclude the role of
clogging the ore. |
| Model | Cavities | Feeding Size(mm) | Adjusting Range of Discharge Opening (mm) | Capacity(t/h) | Power(kw) |
| KL-DG100 | Coarse | 200 | 20-50 | 80-190 | 75-90 |
| Medium | 150 | 16-40 | 60-125 |
| Fine | 50 | 10-30 | 40-100 |
| KL-DG200 | Coarse | 250 | 20-70 | 160-280 | 132-160 |
| Medium | 220 | 16-50 | 120-230 |
| Fine | 70 | 10-30 | 100-210 |
| KL-DG300 | Coarse | 300 | 30-80 | 260-650 | 220-250 |
| Medium | 240 | 20-60 | 200-400 |
| Fine | 100 | 16-30 | 150-300 |
| KL-DG400 | Coarse | 400 | 35-100 | 350-750 | 250-315 |
| Medium | 300 | 25-70 | 260-500 |
| Fine | 150 | 18-40 | 180-370 |
| KL-DG500 | Coarse | 500 | 40-120 | 480-1050 | 280-315 |
| Medium | 350 | 30-80 | 335-900 |
| Fine | 160 | 20-50 | 220-680 |
Product Introduction
SC(S) series single-cylinder hydraulic cone crusher is developed by
adopting advanced crushing technology, integrating mechanical,
hydraulic, electrical and intelligent control technologies. The new
crusher structure, optimized laminar crushing cavity and fully
intelligent automatic control system make SC(S) series
single-cylinder hydraulic cone crusher have the performance
characteristics that traditional cone crusher does not have. It can
be widely used in medium crushing, fine crushing and ultra-fine
crushing.
Widely used in metallurgy, construction, cement, water conservancy,
highway, railroad, mineral processing and other fields, with the
role of medium crushing, fine crushing, ultra-fine crushing.
Single-cylinder cone crusher generally has high crushing
efficiency, simple operation, low operating costs, energy saving,
green environmental protection, easy maintenance, etc., while the
crushed material particle size is excellent, the quality is more
excellent, so it is quite recognized and favored by the users in
the industry, especially by the metal mines, construction of sand
and gravel processing plant is highly sought after, becoming one of
the sought-after equipment in the industry.
