Product Description

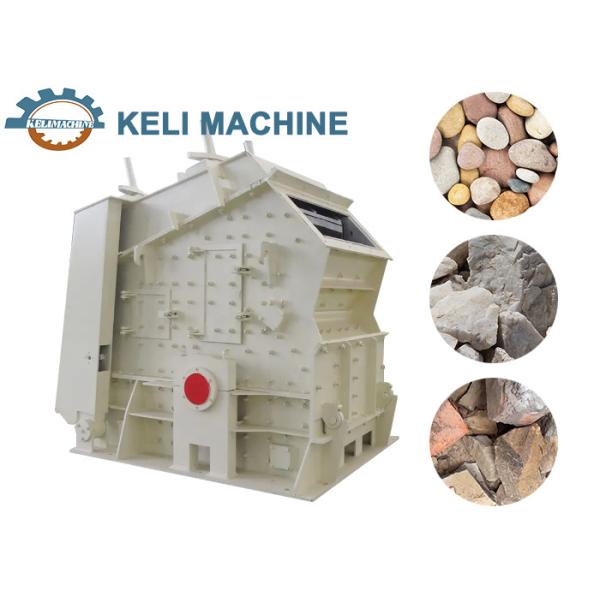

This series of impact crusher is a new generation of impact crusher developed by our company after absorbing advanced technology at home and abroad and combining with the specific industrial and mining conditions of domestic sand and gravel industry. It adopts new manufacturing technology, structural design, the finished product is cubic, no tension and cracks, the particle shape is quite good, can crush all kinds of coarse, medium and fine materials (granite, limestone, concrete, etc.) with the feed size of not more than 500mm and the compressive strength of not more than 350MPa, and is widely used in various ore crushing, railroads, highways, energy, cement, chemical industry, construction, etc. The size of the discharge can be adjusted, and the impact crusher can be used in the sand and gravel industry. Its discharge size can be adjusted, and the crushing specifications are diversified.

Working principle

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Advantages

1. High energy saving

Large feed opening, high crushing cavity, adapt to the high hardness of the material, large size, the product less stone powder

2.Good particle size

The gap between the impact plate and the hammer can be easily adjusted, effectively controlling the particle size of the discharged material, and the particle shape is good.

3.Structure

Compact structure, strong rigidity, large rotor moment of inertia.

4. High comprehensive efficiency

High chrome plate hammer, anti-impact, anti-wear, high impact force.
