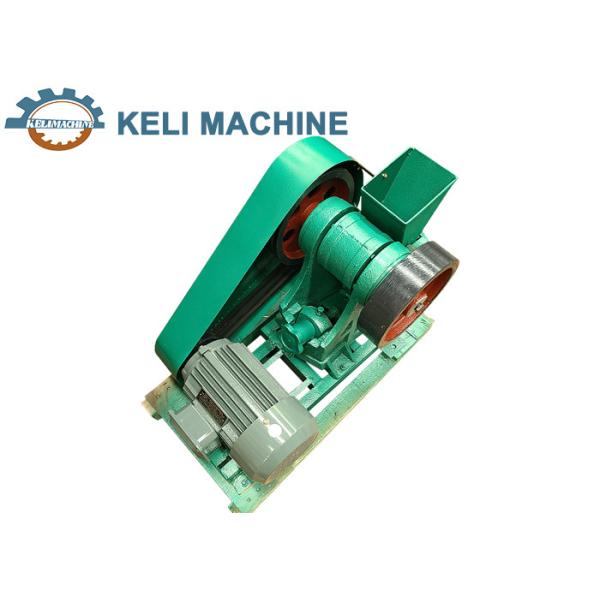

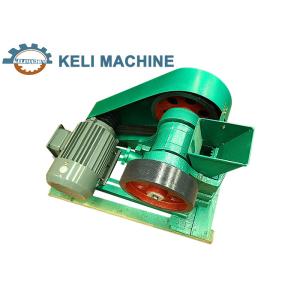

KL-100x125 Mill Crusher 30-2000 kg/h Productivity Laboratory
Crusher
Laboratory crusher
Elevated and thickened base: All bases are made of thickened and
thickened channel steel, which is heavier and more stable in
operation.
Brand bearings: The bearings adopt well-known brand products, which
have better concentricity and are more durable.
Pig iron side plates: The side plates on both sides of the bearing
are made of pig iron material, with high strength and high
temperature resistance, which can prevent high-temperature
lubricating oil from splashing out.
Adjusting screw: Solid iron adjusting screw, with good hand feel
and durability.
| Model | KL-100x60 | KL-100x150 | KL-150x125 | KL-100x125 | KL-Disc |
Feed particle size (mm) | 50 | 100*150 | 125*150 | 100*125 | 175mm(diameter) |
Maximum feed particle size (mm) | 50 | 80 | 120 | 100 | 2-3 |
Discharge particle size (mm) | 3-10 | 5-25 | 3-25 | 2-35 | 0.15-1 |
Motor Power (kw) | 1.5 | 2.2 | 3 | 3 | 1.1 |
Rotating speed (r/min) | 600 | 368 | 368 | 375 | 78 |
Productivity (kg/h) | 45-550 | 480-1800 | 500-3000 | 30-2000 | 25 |
Voltage (v) | 380 | 380 | 380 | 380 | 380 |
Dimensions (mm) | 700*380*480 | 700*380*480 | 1000*450*520 | 1000*550*580 | 690*465*400 |
Machine weight (kg) | 120 | 120 | 280 | 250 | 95 |
Basic Introduction
Laboratory crushers are widely used in laboratory crushing and
sample preparation in coal, metallurgy, mining, power building
materials, chemical, pharmaceutical, and scientific research
departments. This product has the advantages of stable and safe
operation, long service life, fewer processes, fast sample
preparation speed, and being processed in a sealed crushing device
without dust pollution to the environment. It is also easy to
install and use, and generally does not require screening and
shrinking operations.
Principle structure
The working principle of a laboratory crusher is to use an
eccentric hammer installed at the end of the motor shaft to
transform the rotation of the motor into high-frequency vibration
of a crushing device supported on six springs, causing the impact
block in the crushing chamber to produce high-speed impact on the
sample to achieve the purpose of crushing. The sealed laboratory
sample preparation crusher mainly consists of a frame, a motor, an
eccentric hammer, an upper cover, and a compression device. The
upper part of the upper cover is fixed with a crushing device
composed of an impact block, an impact ring, and an impact seat.
The compression device composed of a bracket locking handle is
supported on the bottom by six compression springs. The components
of the crushing device are all made of high-quality steel, which
has undergone precision processing and excellent wear resistance.
Under the action of impact force and compressive stress, a hard and
wear-resistant surface layer can be formed. The more times of use,
the better the work hardening and wear resistance.
