Product Description:
Hammer crusher is suitable for coarse, medium, and fine crushing of
various materials with compressive strength below 180MPa (not
exceeding 100MPa) and moisture content less than 15%, such as
limestone, coal gangue, gypsum, shale, etc. Suitable for crushing
materials with medium hardness in industrial sectors such as
cement, chemical, power, and metallurgy. It can directly crush
materials with a maximum particle size of 600-1800 millimeters to
25 or less. It is also used to break broken wood, paper, or waste
materials of asbestos cement with strong elasticity and toughness,
in order to recover asbestos fibers, and so on.
The hammer crusher is made up of several parts: an enclosure, a
rotor, a hammer head, a countering lining plate and a sieve plate.
The main component of the machine is the rotor consisting of a main
shaft, a disc, a pin and a hammer. This is driven by an electric
motor to spin at high speed in a crushing chamber.
Materials are fed in from the top of the machine and are crushed by
the impacts from the high speed hammer. Meanwhile the material
smaller than the mesh size passes through the sieve and is
discharged from the bottom. The larger particles than the mesh size
are retained on the sieve and continue being crushed before they
are eventually discharged.
- Double-layer casing: The casing is made of double-layer steel plate, which adopts laser
cutting technology, which is beautiful and durable.
- Branded bearings: The bearings adopt well-known brand products, which have better
concentricity and are more durable.
- Train wheel forging hammer head: The hammer head adopts train wheel forging hammer head, which is
more wear-resistant and has a longer service life.
- Wear-resistant liner and sieve bars: wear-resistant, impact-resistant and high-strength materials are
used to effectively protect the casing and prolong the service
life. The sieve bar can adjust the output granularity according to
the demand.
Applications:
It is mainly suitable for medium crushing, as well as coarse
crushing, for countless materials. These include coal, limestone,
slag and other medium-hard ores and rocks which can be found in
construction, electric power, chemical industry, metallurgy,
geological and many other industries and industrial units.
Product Parameters:
| Model | PC400x300 |
| Feed particle size | mm | 200 |
| Discharge particle size | mm | 25 |
| Productivity | t/h | 5-10 |
| Number of motor poles | 4 |
| Power | 5.5kw | 11 |
| Dimensions | 630*380*630mm | 900*670*860 |
| Machine weight | 200kg | 800 |

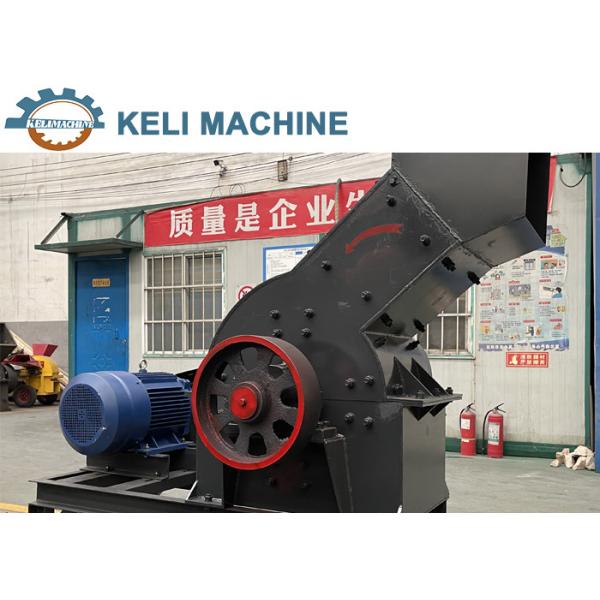

Product Show:
